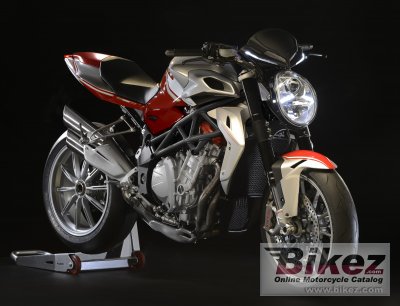

MV Agusta Brutale 1090 RR 20132013 MV Agusta Brutale 1090 RR specifications, pictures, reviews and rating |
| MV Agusta's profilation of this bike |
| Unique to the motorcycle industry is the double overhead camshaft with four valves per cylinder which are arranged in a radial pattern. The engine employs both water and oil cooling with separate radiators. Two engine configurations are offered, they are characterized by different values of maximum power and torque: Brutale 1090 and Brutale 1090 R reach 144 hp (106 kW) at 10,300 rev / min and 112 Nm (11.4 kgm) of torque; Brutale 1090 RR reaches the impressive power of 158 hp (116.5 kW) at 11,900 rev / min and 100 Nm (10.2 kgm) of torque at 10,100 rev / min. |
| General information | |
|---|---|
| Motorcycle name | MV Agusta Brutale 1090 RR |
| Year model | 2013 |
| Type | Naked bike |
| Price as new | Euro 16990. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 1078.0 ccm (65.78 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Engine details | Radial valve |
| Effect | 158.0 HP (115.3 kW)) @ 11900 RPM |
| Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 10100 RPM |
| Top speed | 265.0 km/h (164.7 mph) |
| Compression | 13.0:1 |
| Bore x stroke | 79.0 x 55.0 mm (3.1 x 2.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Magneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection |
| Lubrication system | Double rotor pump |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-disc with mechanical antisurging device |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo Steel tubular trellis ALS. Aluminium alloy swin arm. |
| Trail | 104 mm (4.1 inches) |
| Front suspension | MaMarzocchi “UPSIDE - DOWN” telescopic hydraulic fork with reboundcompression damping and spring preload external and separated adjustment. |
| Front wheel travel | 125 mm (4.9 inches) |
| Rear suspension | Progressive, Sachs single shock absorber with rebound and compression (High speed/Low speed) damping and spring preload adjustment |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/55-ZR17 |
| Front brakes | Double disc. Floating disc. Brembo Radial-type, monobloc with 4 pistons. |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Nissin with 4 piston caliper |
| Diameter | 210 mm (8.3 inches) |
| Wheels | Aluminium alloy rims |
| Physical measures and capacities | |
| Dry weight | 183.0 kg (403.4 pounds) |
| Power/weight ratio | 0.8634 HP/kg |
| Seat height | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall length | 2100 mm (82.7 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1438 mm (56.6 inches) |
| Fuel capacity | 23.00 litres (6.08 US gallons) |
| Other specifications | |
| Color options | Pastel red/Silver, Metallic gold/Pearl white, Metallic blue/Pearl white |
| Starter | Electric |
| Electrical | 12V 8.6Ah battery. Alternator 350 W at 5000 r.p.m. |
| Comments | Thermoplastic fairing. Traction control adjustable on 8 levels. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 MV Agusta Brutale 1090 RR discussion group or the general MV Agusta discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
