General information |
|
Model name
|

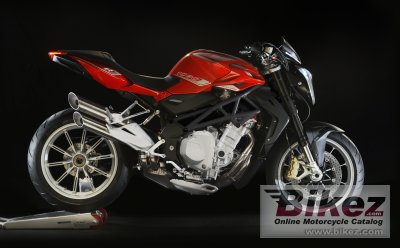

MV Agusta Brutale 1090 R |
|
Model year
|
2013 |
|
Category
|
Naked bike |
| Price as new | Euro 13990. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1078.0 ccm (65.78 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
142.0 HP (103.6 kW)) @ 10300 RPM |
|
Torque
|
112.0 Nm (11.4 kgf-m or 82.6 ft.lbs) @ 8100 RPM |
|
Top speed
|
265.0 km/h (164.7 mph) |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
79.0 x 55.0 mm (3.1 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Magneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection |
|
Lubrication system
|
Double rotor pump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multidisc |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Modular frame with tubular steel trellis section and aluminum plates offering a high torsional stiffness |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Marzocchi “UPSIDE - DOWN” telescopic hydraulic fork with external and separated adjustment of rebound and compression damping and of spring preload. |
|
Front wheel travel
|
125 mm (4.9 inches) |
|
Rear suspension
|
Progressive, Sachs single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Floating disc. Brembo radial with 4 pistons caliper. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Nissin with 4 piston caliper |
|
Diameter
|
210 mm (8.3 inches) |
|
Wheels
|
Aluminium alloy rims |
|
Physical measures and capacities |
|
Dry weight
|
183.0 kg (403.4 pounds) |
|
Power/weight ratio
|
0.7760 HP/kg |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2100 mm (82.7 inches) |
|
Overall width
|
775 mm (30.5 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1438 mm (56.6 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Other specifications |
|
Color options
|
Metallic black, Pastel red, Silver |
|
Starter
|
Electric |
|
Electrical
|
12V 8.6Ah battery. Alternator 350 W at 5000 r.p.m. |
|
Comments
|
Thermoplastic fairing. Traction control adjustable on 8 levels. |
