| MV Agusta's profilation of this bike |
| Form and function: following these inspirational principles Brutale continues to fascinate and has evolved in many details. Having immediate impact are the lighting elements, day running lights, arranged symmetrically on either side of the dashboard cover: capable of enhancing the whole frontal section, also making the motorcycle more visible and therefore safe during day and night. |
|
General information |
|
Model
|

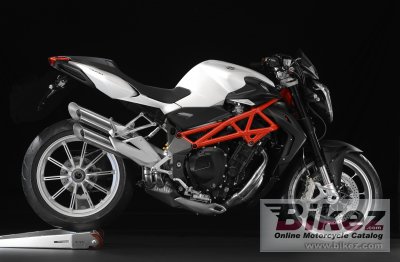

MV Agusta Brutale 1090 |
|
Year of manufacture
|
2013 |
|
Type
|
Naked bike |
| Price as new | Euro 12990. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1078.0 ccm (65.78 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Output
|
142.0 HP (103.6 kW)) @ 10300 RPM |
|
Torque
|
112.0 Nm (11.4 kgf-m or 82.6 ft.lbs) @ 8100 RPM |
|
Top speed
|
265.0 km/h (164.7 mph) |
|
Compression
|
13.1:1 |
|
Bore x stroke
|
79.0 x 55.0 mm (3.1 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Magneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection |
|
Lubrication system
|
Double rotor pump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multidisc |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
ALS tubular steel trellis. |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Marzocchi “UPSIDE - DOWN” telescopic hydraulic fork with external and separated adjustment of rebound and compression damping and of spring preload. |
|
Front wheel travel
|
125 mm (4.9 inches) |
|
Rear suspension
|
Progressive, Sachs single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Floating disc. 4-piston caliper. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper |
|
Diameter
|
210 mm (8.3 inches) |
|
Wheels
|
Aluminium alloy rims |
|
Physical measures and capacities |
|
Dry weight
|
183.0 kg (403.4 pounds) |
|
Power/weight ratio
|
0.7760 HP/kg |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2100 mm (82.7 inches) |
|
Overall width
|
775 mm (30.5 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1438 mm (56.6 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Other specifications |
|
Color options
|
Matt Black, Matt pearl white, Matt metallic grey |
|
Starter
|
Electric |
|
Electrical
|
12V 8.6Ah battery. |
|
Comments
|
Thermoplastic fairing |
