| MotoCzysz' profilation of this bike |

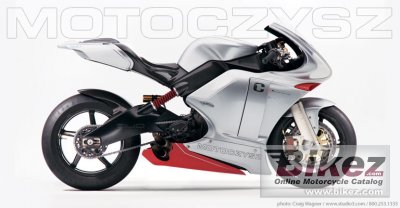

| Michael Czysz has had a dream - and you can´t fault his dedication in trying to make it come true. He has built an American motorcycle worthy of the MotoGP grid, then brought it to the public as a high-tech Superbike, just like Aprilia has done with its new RSV4. |
|
General information |
|
Model name
|
MotoCzysz C1 990 |
|
Model year
|
2010 |
|
Category
|
Sport |
|
Rating
|
2.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
990.0 ccm (60.41 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
220.0 HP (160.6 kW)) @ 15000 RPM |
|
Torque
|
108.5 Nm (11.1 kgf-m or 80.0 ft.lbs) |
|
Max RPM
|
16500 |
|
Bore x stroke
|
82.0 x 46.9 mm (3.2 x 1.8 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
4 plug mounted coils |
|
Lubrication system
|
Wet deep sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry pack with Hydro electro slipper control |
|
Exhaust system
|
FMF Titanium 45mm 4-2-4 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Carbon Fiber Frame 5kg with Carbon Fiber Subframe 2.5 kg |
|
Rake (fork angle)
|
22.5° |
|
Front suspension
|
6X Flex with Ohlins shock |
|
Rear suspension
|
DUO spring with regressive damped Ohlins shock |
|
Front tire
|
3.50-16.5 |
|
Rear tire
|
6.26-16.5 |
|
Front brakes
|
Single disc. Brembo Monoblock radial mount calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo Monoblock radial mount calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
158.0 kg (348.3 pounds) |
|
Power/weight ratio
|
1.3924 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1420 mm (55.9 inches) |
|
Fuel capacity
|
7.57 litres (2.00 US gallons) |
|
Other specifications |
|
Color options
|
Silver |
|
Starter
|
Electric |
|
Comments
|
Z-Line 4 engine. Twin Crank/ Triple OHC. Limited edition of 50 bikes. |
