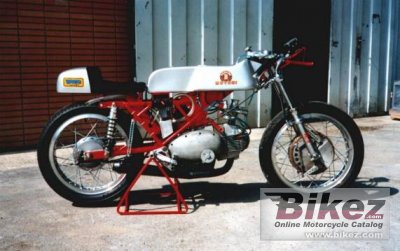

| Motobi's profilation of this bike |
| The Motobi was a true production racer, tailor-made for success in Italy´s thriving MSDS (Moto Sportive Derivate dalla Serie) Formula 3 category for Junior-class riders - sort of one step down from National-level racing. The Motobi was competitive in both the 125CC and 175CC classes, as well as in the 250cc category that came later Motobis won a total of 16 Italian Junior championships in the 1965, providing the steppingstone to a Grand Prix career for such famous names as Roberto Gallina, Silvano Bertarelli and future world champions Eugenio Lazzarini and Pierpaolo Bianchi. |
|
General information |
|
Motorcycle name
|
Motobi Zanzani 250 6 Tiranti |
|
Year
|
2013 |
|
Category
|
Classic |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
249.0 ccm (15.19 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Steel valve , steel retainer, R and D valve springs. |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
75.0 x 57.0 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Dell´Orto PHF carburetor with horizontal conversion |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Crane cams electronic ignition/Helotronik |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Zanzani racing frame |
|
Front suspension
|
Ceriani fork |
|
Rear suspension
|
Work shocks, aluminium |
|
Front tire
|
2.78-18 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc. Fontana 4LS Magnesium |
|
Diameter
|
210 mm (8.3 inches) |
|
Rear brakes
|
Single disc. OEM 2LS |
|
Diameter
|
160 mm (6.3 inches) |
|
Wheels
|
Front and rear Akront aluminum rims. Dunlop tyre fron. Avon rear. |
|
Physical measures and capacities |
|
Dry weight
|
101.0 kg (222.7 pounds) |
|
Weight incl. oil, gas, etc
|
117.0 kg (257.9 pounds) |
|
Overall length
|
1920 mm (75.6 inches) |
|
Ground clearance
|
195 mm (7.7 inches) |
|
Wheelbase
|
1310 mm (51.6 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Oil capacity
|
1.50 litres (1.59 US quarts) |
|
Other specifications |
|
Color options
|
Red/white, gray |
|
Starter
|
Electric |
|
Comments
|
Carbon fairing,seat,mudguard. Made by Primo Zanzani, Italy. |
