| Motobi's profilation of this bike |
| Given that these are faithful in every detail to the original Motobi Formula 3 MSDS design, they´re not so much replicas as the resumption of manufacture a quarter-century down the line of the original product.... |
|
General information |
|
Model
|

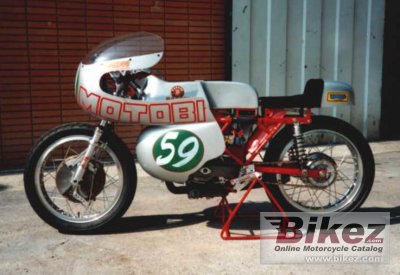

Motobi Zanzani 250 6 Tiranti |
|
Year of manufacture
|
2010 |
|
Type
|
Classic |
| Price as new | Euro 11800. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
249.0 ccm (15.19 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
75.0 x 57.0 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Dell´Orto PHF |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Crane cams |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Zanzani racing frame |
|
Front suspension
|
Ceriani |
|
Rear suspension
|
Aluminum work shocks |
|
Front tire
|
2.78-18 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc. Fontana 4LS Magnesium |
|
Diameter
|
210 mm (8.3 inches) |
|
Rear brakes
|
Single disc. OEM 2LS |
|
Diameter
|
160 mm (6.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
101.0 kg (222.7 pounds) |
|
Overall length
|
1920 mm (75.6 inches) |
|
Ground clearance
|
195 mm (7.7 inches) |
|
Wheelbase
|
1310 mm (51.6 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Oil capacity
|
1.50 litres (1.59 US quarts) |
|
Other specifications |
|
Color options
|
Red/white, gray |
|
Starter
|
Electric |
|
Comments
|
Made by Primo Zanzani, Italy. |
