| Moto Morini's profilation of this bike |
| Unadorned, eclectic, agile and easy to handle. Feel free again. |
|
General information |
|
Motorcycle name
|

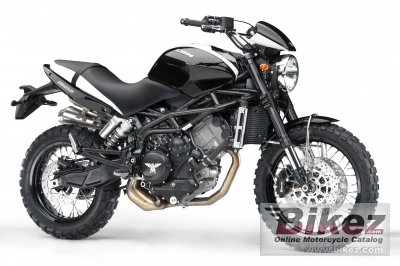

Moto Morini Scrambler |
|
Year of manufacture
|
2010 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1187.0 ccm (72.43 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
117.0 HP (85.4 kW)) @ 8500 RPM |
|
Torque
|
101.7 Nm (10.4 kgf-m or 75.0 ft.lbs) @ 6700 RPM |
|
Bore x stroke
|
107.0 x 66.0 mm (4.2 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
I.A.W. |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-plate clutch in oil bath with antiskipping system and radial master-cylinder |
|
Exhaust system
|
Double silencer, 3-way catalytic converter and oxygen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Verlicchi high-strength steel tube trellis frame |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Marzocchi upside-down fully adjustable fork |
|
Front wheel travel
|
155 mm (6.1 inches) |
|
Rear suspension
|
With progressive motion and single Sachs shock absorber adjustable in extension, compression and spring pre-charge with singlering-nut.Enhanced piston and stretched counter-spring |
|
Rear wheel travel
|
190 mm (7.5 inches) |
|
Front tire
|
110/80-R17 |
|
Rear tire
|
150/70-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
199.6 kg (440.0 pounds) |
|
Power/weight ratio
|
0.5862 HP/kg |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
865 mm (34.1 inches) |
|
Ground clearance
|
162 mm (6.4 inches) |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.50 litres (1.19 US gallons) |
|
Other specifications |
|
Color options
|
Black/white, red/white/black |
|
Starter
|
Electric |
