Moto Morini Granpasso H83 20122012 Moto Morini Granpasso H83 specifications, pictures, reviews and rating |

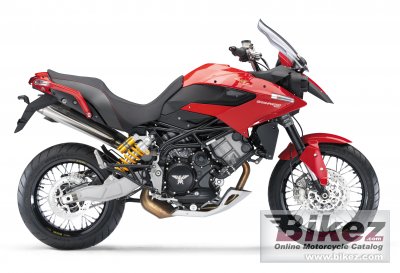

2012 Moto Morini Granpasso H83. Image credits - Moto Morini.
| Moto Morini's profilation of this bike |
| Whether used for touring, off-road or battling city traffic, Granpasso H83 is dedicated to the motorcyclist who racks up miles, wants a comfortable ride and ventures into places where there’s no trace of asphalt. |
| General information | |
|---|---|
| Motorcycle name | Moto Morini Granpasso H83 |
| Year of manufacture | 2012 |
| Type | Allround |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 1187.0 ccm (72.43 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Moto Morini Bialbero CorsaCorta |
| Output | 118.0 HP (86.1 kW)) @ 8500 RPM |
| Torque | 103.6 Nm (10.6 kgf-m or 76.4 ft.lbs) @ 7000 RPM |
| Compression | 12.5:1 |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | I.A.W. electronics |
| Lubrication system | Forced |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Driveline | With constant mesh spur gears |
| Exhaust system | Ilencer with 3-way catalytic converter with oxygen sensor |
| Chassis, suspension, brakes and wheels | |
| Frame type | Verlicchi high-strength steel tube trellis frame |
| Rake (fork angle) | 26.5° |
| Trail | 110 mm (4.3 inches) |
| Front suspension | Marzocchi upside down |
| Front wheel travel | 190 mm (7.5 inches) |
| Rear suspension | Ohlins single shock absorber |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 110/80-R19 |
| Rear tire | 150/70-R17 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Wheels | Excel spoke rims with aluminium channel |
| Physical measures and capacities | |
| Dry weight | 210.0 kg (463.0 pounds) |
| Power/weight ratio | 0.5619 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall length | 2170 mm (85.4 inches) |
| Ground clearance | 200 mm (7.9 inches) |
| Fuel capacity | 27.00 litres (7.13 US gallons) |
| Reserve fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | Silver, white, red |
| Starter | Electric |
| Instruments | Electronic rev counter and speedometer with multifunctional LCD display |
