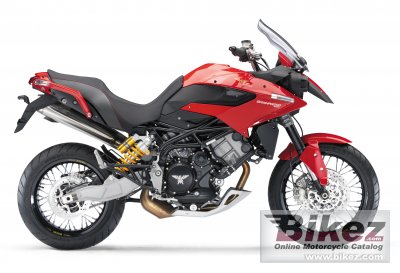

Moto Morini Granpasso H83 20102010 Moto Morini Granpasso H83 specifications, pictures, reviews and rating |
| Moto Morini's profilation of this bike |
| Long-legged ans wasp-waisted. Granpasso is beautiful and the is already enough. |
| General information | |
|---|---|
| Model name | Moto Morini Granpasso H83 |
| Year | 2010 |
| Category | Allround |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 1187.0 ccm (72.43 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 118.0 HP (86.1 kW)) @ 8500 RPM |
| Torque | 103.6 Nm (10.6 kgf-m or 76.4 ft.lbs) @ 7000 RPM |
| Compression | 12.5:1 |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Ignition | I.A.W. electronics |
| Lubrication system | Forced |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Exhaust system | Sport Termignoni with double silencer, 3-way catalytic converter and oxygen sensor. Euro 3. |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-strength steel tube trellis frame |
| Rake (fork angle) | 26.5° |
| Trail | 110 mm (4.3 inches) |
| Front suspension | Marzocchi upside down |
| Front wheel travel | 190 mm (7.5 inches) |
| Rear suspension | Ohlins single shock absorber |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 110/80-R19 |
| Rear tire | 150/70-R17 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight | 210.0 kg (463.0 pounds) |
| Power/weight ratio | 0.5619 HP/kg |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall length | 2170 mm (85.4 inches) |
| Ground clearance | 200 mm (7.9 inches) |
| Fuel capacity | 27.00 litres (7.13 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | White/black/red, titanium/black, red/black |
| Starter | Electric |
