General information |
|
Model name
|

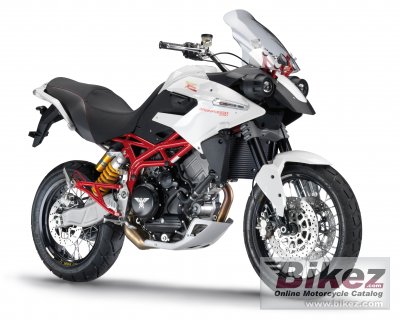

Moto Morini Granpasso 1200 |
|
Year
|
2012 |
|
Category
|
Allround |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1187.0 ccm (72.43 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Moto Morini Bialbero CorsaCorta 87 degree V-twin engine |
|
Power
|
118.0 HP (86.1 kW)) @ 8500 RPM |
|
Torque
|
103.6 Nm (10.6 kgf-m or 76.4 ft.lbs) @ 7000 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
107.0 x 66.0 mm (4.2 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magneti Marelli |
|
Ignition
|
I.A.W. electronics |
|
Lubrication system
|
Forced by oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
With constant mesh spur gears |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
Silencer with 3-way catalytic converter with oxygen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High-strength steel tube trellis frame |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
110 mm (4.3 inches) |
|
Front suspension
|
Marzocchi upside-down fork |
|
Front wheel travel
|
190 mm (7.5 inches) |
|
Rear suspension
|
Ohlins single shock absorber with separate tank featuring spring length, preload, rebound and compression damping multiple adjustment |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
110/80-R19 |
|
Rear tire
|
150/70-R17 |
|
Front brakes
|
Double disc. Floating disc, 2-piston |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Wheels
|
Excel spoke rims with aluminium channel |
|
Physical measures and capacities |
|
Dry weight
|
210.0 kg (463.0 pounds) |
|
Power/weight ratio
|
0.5619 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Overall height
|
875 mm (34.4 inches) |
|
Overall length
|
2170 mm (85.4 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Ground clearance
|
200 mm (7.9 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
27.00 litres (7.13 US gallons) |
|
Reserve fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Color options
|
Silver, white, red |
|
Starter
|
Electric |
|
Instruments
|
Electronic rev counter and speedometer with multifunctional LCD display |
|
Factory warranty
|
3 year unlimited milage |
|
Comments
|
Made in Italy. |
