General information |
|
Motorcycle name
|

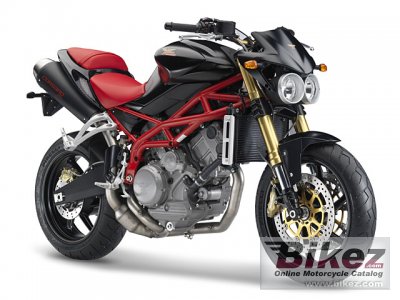

Moto Morini Corsaro Avio |
|
Model year
|
2012 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1187.0 ccm (72.43 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Bialbero CorsaCorta 87 degree longitudinal V-twin |
|
Power output
|
120.0 HP (87.6 kW)) @ 8500 RPM |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
107.0 x 66.0 mm (4.2 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magneti Melli indirect electronic injection with 54 mm Ø throttle body |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-plate clutch in oil bath with antiskipping system and radial master-cylinder |
|
Driveline
|
6 ratio with constant mesh spur gears |
|
Emission details
|
Euro 3. |
|
Exhaust system
|
Sport Termignoni with double silencer, 3-way catalytic converter and oxygen sensor. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High-strength steel tube trellis frame |
|
Rake (fork angle)
|
24.5° |
|
Trail
|
100 mm (3.9 inches) |
|
Front suspension
|
Marzocchi upside down with 50 mm Ø stems, hydraulically adjustable in extension, compression and preloading. |
|
Front wheel travel
|
129 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with Sachs monoshock adjustable in rebound, compression and spring loading |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Bremo, 4-piston caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Casted Aluminium alloy |
|
Physical measures and capacities |
|
Dry weight
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.6061 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
830 mm (32.7 inches) |
|
Overall length
|
2070 mm (81.5 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Silver/blue |
|
Starter
|
Electric |
|
Light
|
Dual head lights |
|
Factory warranty
|
3 years. |
