Moto Morini Corsaro Avio 20102010 Moto Morini Corsaro Avio specifications, pictures, reviews and rating |

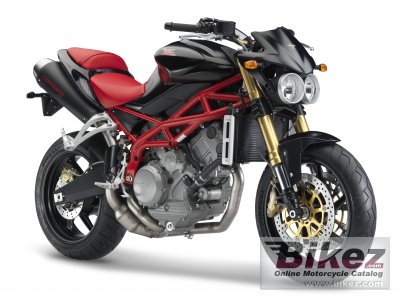

2010 Moto Morini Corsaro Avio. Image credits - Moto Morini.
| Moto Morini's profilation of this bike |
| The character and personality of a sweet traveling companion. |
| General information | |
|---|---|
| Motorcycle name | Moto Morini Corsaro Avio |
| Model year | 2010 |
| Category | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1187.0 ccm (72.43 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 120.0 HP (87.6 kW)) @ 8500 RPM |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 RPM |
| Compression | 12.5:1 |
| Bore x stroke | 107.0 x 66.0 mm (4.2 x 2.6 inches) |
| Fuel system | Injection. Magneti Marelli |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | I.A.W. |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-plate |
| Exhaust system | Double silencer, 3-way catalytic converter and oxygen sensor. Euro 3. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Verlicchi high-strength steel tube trellis |
| Rake (fork angle) | 24.5° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | Marzocchi upside-down fully adjustable fork with 50 mm legs |
| Front wheel travel | 129 mm (5.1 inches) |
| Rear suspension | With progressive motion and single Sachs shock absorber adjustable in extension, compression and spring pre-charge |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Bremo, 4-piston |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Power/weight ratio | 0.6061 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall length | 2070 mm (81.5 inches) |
| Overall width | 810 mm (31.9 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Silver/blue, black/red |
