| Moto Morini's profilation of this bike |
| The Corsaro is a road beast: the sound of it´s twin cylinder 140 HP becomes a part of you, and never let´s you go.
|
|
General information |
|
Model name
|

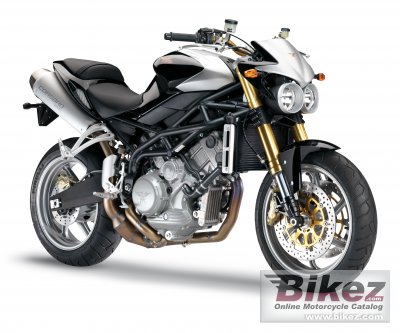

Moto Morini Corsaro 1200 |
|
Year of manufacture
|
2010 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1187.0 ccm (72.43 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
140.0 HP (102.2 kW)) @ 8500 RPM |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 6700 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
107.0 x 66.0 mm (4.2 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magneti Marelli, 54 mm throttle body |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-plate clutch in oil bath with antiskipping system and radial master-cylinder |
|
Exhaust system
|
Sport Termignoni with double silencer, 3-way catalytic converter and oxygen sensor. Euro 3. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High-strength steel tube trellis frame |
|
Rake (fork angle)
|
24.5° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
Marzocchi upside down with 50 mm/ 1.96 Ø |
|
Front wheel travel
|
129 mm (5.1 inches) |
|
Rear suspension
|
Sachs shock absorber |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-R17 |
|
Rear tire
|
180/55-R17 |
|
Front brakes
|
Double disc. Bremo, 4-piston |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.7071 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2070 mm (81.5 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black/grey, red/gray, white/black |
|
Starter
|
Electric |
