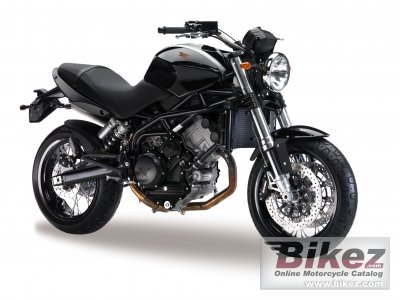

Moto Morini 9 1-2 20122012 Moto Morini 9 1-2 specifications, pictures, reviews and rating |
| Moto Morini's profilation of this bike |
| The name 9 ½ is an homage to the legendary 3½ twin cylinder of the 1970s. However, it is also acknowledgement of a common thread running between two projects separated in time. The 9½ in fact is the motorcycle whose style, rational design and technological innovation most closely interpret the spirit of that Morini machine. |
| General information | |
|---|---|
| Motorcycle name | Moto Morini 9 1-2 |
| Year | 2012 |
| Category | Naked bike |
| Rating | 3.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 1187.0 ccm (72.43 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 87 degree V-twin |
| Power | 117.0 HP (85.4 kW)) @ 8500 RPM |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 RPM |
| Bore x stroke | 107.0 x 66.0 mm (4.2 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Magneti Marelli indirect electronic injection with 54 mm throttle body |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | I.A.W. electronic |
| Lubrication system | Forced with trochoidal pump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-plate |
| Emission details | Euro 3. |
| Exhaust system | 3-way catalytic converter with oxygen sensor. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Verlicchi high strength steel tube tellis frame |
| Rake (fork angle) | 24.5° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | Marzocchi upside-down fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Oval steel tube swin arm. Single lateral shock absorber with fully adjustable pibby tank |
| Rear wheel travel | 150 mm (5.9 inches) |
| Front tire | 120/70-R17 |
| Rear tire | 180/55-R17 |
| Front brakes | Double disc. Bremo, 4-piston calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo, 2-piston calipers |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Excel spoke rims with aluminium channel |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Power/weight ratio | 0.5909 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall length | 2170 mm (85.4 inches) |
| Overall width | 865 mm (34.1 inches) |
| Ground clearance | 162 mm (6.4 inches) |
| Wheelbase | 1470 mm (57.9 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Reserve fuel capacity | 4.50 litres (1.19 US gallons) |
| Other specifications | |
| Color options | Black/red, black/silver |
| Starter | Electric |
| Instruments | Electronic/analogical rev counter and speedometer with multifunctional LCD display |
| Factory warranty | 3 years |
| Comments | Italian brand. |
