Moto Morini 9 1-2 20112011 Moto Morini 9 1-2 specifications, pictures, reviews and rating |

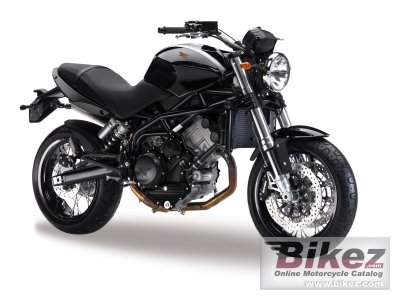

 2011 Moto Morini 9 1-2. Picture credits - Moto Morini. Submit more pictures.
|
| General information | |
|---|---|
| Model | Moto Morini 9 1-2 |
| Year model | 2011 |
| Type | Naked bike |
| Price as new | Euro 10870. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1187.0 ccm (72.43 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 87 degree V-twin |
| Effect | 117.0 HP (85.4 kW)) @ 8500 RPM |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 RPM |
| Bore x stroke | 107.0 x 66.0 mm (4.2 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Magneti Marelli indirect electronic injection with 54 mm throttle body |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | I.A.W. electronic |
| Lubrication system | Forced with trochoidal pump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-plate type |
| Emission details | Euro 3. |
| Exhaust system | Silencer, 3-way catalytic converter with oxygen sensor. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Verlicchi high strength steel tube tellis frame |
| Rake (fork angle) | 24.5° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | Marzocchi upside-down fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Single lateral shock absorber with fully adjustable pibby tank |
| Rear wheel travel | 150 mm (5.9 inches) |
| Front tire | 120/70-R17 |
| Rear tire | 180/55-R17 |
| Front brakes | Double disc. Bremo, 4-piston calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo, 2-piston calipers |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Power/weight ratio | 0.5909 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 800 mm (31.5 inches) |
| Overall length | 2170 mm (85.4 inches) |
| Overall width | 865 mm (34.1 inches) |
| Ground clearance | 162 mm (6.4 inches) |
| Wheelbase | 1470 mm (57.9 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Reserve fuel capacity | 4.50 litres (1.19 US gallons) |
| Other specifications | |
| Color options | Black/red, black/silver |
| Starter | Electric |
| Instruments | Analgue/LCD |
| Factory warranty | 3 years |
| Comments | Italian brand. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Moto Morini 9 1-2 discussion group or the general Moto Morini discussion group. |
| Related bikes | List related bikes for comparison of specs. |
