| Moto Morini's profilation of this bike |
| Road bike, touring, naked. 9 1/2 is all this. |
|
General information |
|
Motorcycle name
|

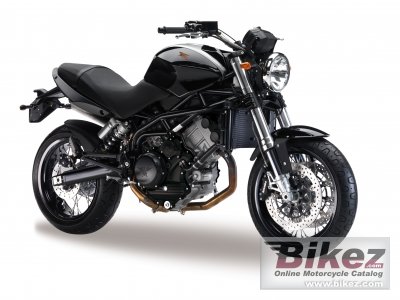

Moto Morini 9 1-2 |
|
Year model
|
2010 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1187.0 ccm (72.43 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
115.3 HP (84.2 kW)) @ 8500 RPM |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 RPM |
|
Bore x stroke
|
107.0 x 66.0 mm (4.2 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magneti Marelli indirect electronic injection with 54 mm throttle body |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
I.A.W. electronic |
|
Lubrication system
|
Forced with trochoidal pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet, multi-plate type |
|
Exhaust system
|
Silencer, 3-way catalytic converter with oxygen sensor. Euro 3. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Verlicchi high strength steel tube tellis frame |
|
Front suspension
|
Marzocchi upside-down fork |
|
Rear suspension
|
Single lateral shock absorber with fully adjustable pibby tank |
|
Front tire
|
120/70-R17 |
|
Rear tire
|
180/55-R17 |
|
Front brakes
|
Double disc. Bremo, 4-piston calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo, 2-piston calipers |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.5824 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2170 mm (85.4 inches) |
|
Overall width
|
865 mm (34.1 inches) |
|
Ground clearance
|
162 mm (6.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.50 litres (1.19 US gallons) |
|
Other specifications |
|
Color options
|
Black/red, black/silver |
|
Starter
|
Electric |
