General information |
|
Model
|

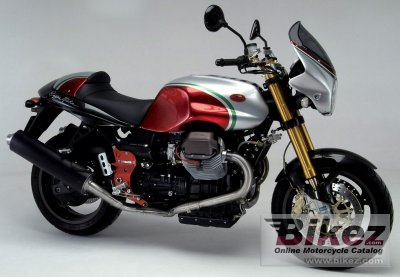

Moto Guzzi V 11 Coppa Italia |
|
Year model
|
2004 |
|
Type
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1064.0 ccm (64.93 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
89.9 HP (65.6 kW)) @ 8200 RPM |
|
Torque
|
94.0 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 5400 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
92.0 x 80.0 mm (3.6 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mono beam frame |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
Ohlins USD fork, 43 mm compression/extension adjustable |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Cantilever swing arm with Ohlins mono shock compression/extension/preload adjustable |
|
Rear wheel travel
|
128 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
226.0 kg (498.2 pounds) |
|
Power/weight ratio
|
0.3976 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1200 mm (47.2 inches) |
|
Overall length
|
2150 mm (84.6 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Ground clearance
|
178 mm (7.0 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
20.70 litres (5.47 US gallons) |
|
Reserve fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Red/green/grey |
|
Comments
|
V11 Coppa Italia - The motorcycle produced to celebrate participation in the Italian Naked Bike Championship in ´03. The design is classic, compact and muscular exposing the latest 90º V-Twin with added crossover pipe and increased compression ratio to 9.8:1. Brembo Gold Series brakes. Ohlins front and rear suspension and steering damper. The Sport Bike par excellence from the Mandello del Lario company. Available in limited numbers in Tri-color Silver, Red and Green.
|
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Moto Guzzi V 11 Coppa Italia discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Moto Guzzi bike
|
Racing track capabilities for the 2004 Moto Guzzi V 11 Coppa Italia:
 (66.9 out of 100)
