General information |
|
Model
|

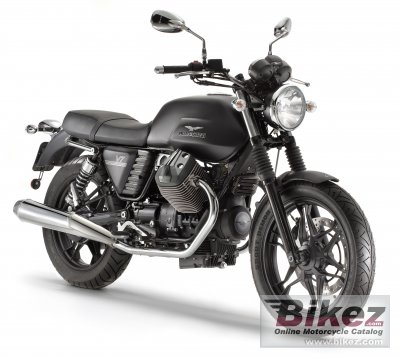

Moto Guzzi V7 Stone |
|
Year model
|
2013 |
|
Type
|
Classic |
|
Rating
|
3.6 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
744.0 ccm (45.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
90° V-twin |
|
Effect
|
49.6 HP (36.2 kW)) @ 6200 RPM |
|
Torque
|
57.9 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 RPM |
|
Fuel system
|
Injection. Weber-Marelli electronic fuel injection. |
|
Lubrication system
|
Forced circulation with lobe pump - circuit capacity: 1.78 Kg |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry single plate with flexible couplings |
|
Driveline
|
CA.R.C. Compact Reactive Shaft Drive |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle tubular frame in ALS steel with detachable rear subframe |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Telescopic hydraulic fork with 40 mm stanchions |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers |
|
Rear wheel travel
|
118 mm (4.6 inches) |
|
Front tire
|
100/90-18 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc. Brembo caliper with 4 differentiated pistons |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Floating disc. Two-piston calipers. |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.2506 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
803 mm (31.6 inches) If adjustable, highest setting. |
|
Overall height
|
1113 mm (43.8 inches) |
|
Overall length
|
2184 mm (86.0 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Wheelbase
|
1449 mm (57.0 inches) |
|
Fuel capacity
|
21.95 litres (5.80 US gallons) |
|
Reserve fuel capacity
|
3.79 litres (1.00 US gallons) |
|
Oil capacity
|
2.00 litres (2.11 US quarts) |
|
Other specifications |
|
Color options
|
Black, white |
|
Starter
|
Electric |
|
Factory warranty
|
Two-year manufacturer’s warranty and roadside assistance for one year |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-60 Synthetic |
|
Brake fluid
|
DOT 4 |
|
Battery
|
YTX14-BS |
|
Spark plugs
|
NGK CPR8EB-9 |
|
Idle speed
|
1350 +/-100 RPM |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
40 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
