General information |
|
Model
|

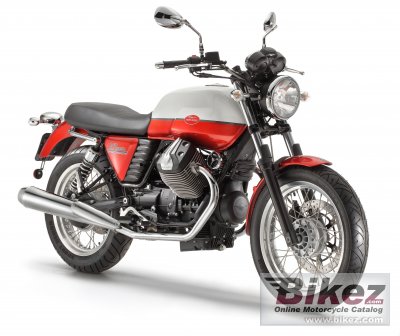

Moto Guzzi V7 Special |
|
Model year
|
2012 |
|
Category
|
Classic |
|
Rating
|
3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
744.0 ccm (45.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
V 90 twin |
|
Power output
|
50.0 HP (36.5 kW)) @ 6200 RPM |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 2800 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry single plate with flexible couplings |
|
Driveline
|
Helicoidal gears, ratio 16/21=1:1.3125. Final drive: Shaft drive, ratio 4.825. |
|
Emission details
|
Three-way catalytic converter with double lambda probe |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
ALS steel tubular dismountable twin cradle |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers. |
|
Rear wheel travel
|
118 mm (4.6 inches) |
|
Front tire
|
100/90-18 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
260 mm (10.2 inches) |
|
Wheels
|
Polished aluminium, spoked. |
|
Physical measures and capacities |
|
Dry weight
|
179.0 kg (394.6 pounds) |
|
Power/weight ratio
|
0.2793 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2185 mm (86.0 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Ground clearance
|
182 mm (7.2 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Red/white, yellow/black |
|
Starter
|
Electric |
