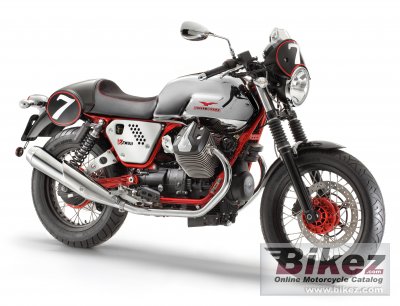

Moto Guzzi V7 Racer 20122012 Moto Guzzi V7 Racer specifications, pictures, reviews and rating |
| Moto Guzzi's profilation of this bike |
| The Moto Guzzi V7 Racer pays homage to the extraordinary racing career of the V7 Sport, an icon in the glorious history of the marque from Mandello del Lario. |
| General information | |
|---|---|
| Model | Moto Guzzi V7 Racer |
| Model year | 2012 |
| Category | Classic |
| Price as new | US$ 9790. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.3 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 744.0 ccm (45.40 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | V 90 twin |
| Power output | 47.6 HP (34.8 kW)) @ 6800 RPM |
| Torque | 54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Lubrication system | By lobes with pressure pump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Dry single plate with flexible couplings |
| Driveline | Helicoidal gears, ratio 16/21=1:1.3125. Final drive: Shaft drive, ratio 4.825. |
| Emission details | 3-way catalytic converter and oxygen sensor. |
| Chassis, suspension, brakes and wheels | |
| Frame type | ALS steel tubular dismountable twin cradle |
| Rake (fork angle) | 27.5° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Marzocchi forks |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers. |
| Rear wheel travel | 118 mm (4.6 inches) |
| Front tire | 110/90-18 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 182.0 kg (401.2 pounds) |
| Weight incl. oil, gas, etc | 198.0 kg (436.5 pounds) |
| Power/weight ratio | 0.2616 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 2185 mm (86.0 inches) |
| Overall width | 805 mm (31.7 inches) |
| Ground clearance | 182 mm (7.2 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Reserve fuel capacity | 2.50 litres (0.66 US gallons) |
| Other specifications | |
| Color options | Silver/red/black |
| Starter | Electric |
