General information |
|
Model name
|

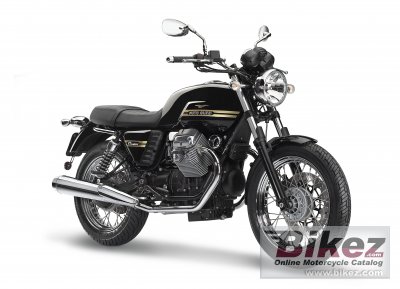

Moto Guzzi V7 Classic |
|
Model year
|
2011 |
|
Category
|
Classic |
| Price as new | Euro 7950. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
744.0 ccm (45.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
90° V-Twin |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber-Marelli |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single disc, dry, with cush drive |
|
Driveline
|
Primary drive: Helical gears, ratio: 16/21=1 : 1,3125. Secondary drive: shaft, ratio 8/33=1 : 4,825 |
|
Emission details
|
3 ways catalyzed with Lambda sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Marzocchi hydraulic telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swinging arm in light cast alloy with two dampers, preload adjustable |
|
Rear wheel travel
|
118 mm (4.6 inches) |
|
Front tire
|
110/70-17 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
260 mm (10.2 inches) |
|
Wheels
|
Spoke light alloy |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Weight incl. oil, gas, etc
|
198.0 kg (436.5 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2185 mm (86.0 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Guzzi black, White diamond |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
