Moto Guzzi's profilation of this bike |
In 1967 the first big Italian bike appeared on the motorcycle market: the Moto Guzzi V7. The brainchild of Giulio Cesare Carcano, the V7 made its debut with a 2-clylinder 90° V-twin mounted across the frame and a cylinder capacity of 703cc, a record for the time. The bike was an immediate success with both press and public, and the V7 helped make Moto Guzzi’s name throughout the world, as a producer of prestigious, comfortable, elegant and reliable motorcycles. |
General information |
Motorcycle name
|

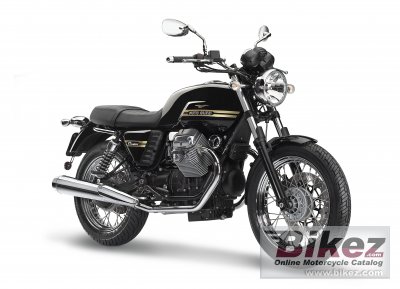

Moto Guzzi V7 Classic |
Year
|
2010 |
Category
|
Classic |
Rating
|
3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
744.0 ccm (45.40 cubic inches) |
Engine type
|
V2, four-stroke |
Compression
|
9.6:1 |
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Injection. Weber-Marelli |
Fuel control
|
Overhead Cams (OHC) |
Lubrication system
|
By lobes with pressure pump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Exhaust system
|
3 ways catalyzed with sonda Lambda |
Chassis, suspension, brakes and wheels |
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
Rake (fork angle)
|
27.5° |
Trail
|
109 mm (4.3 inches) |
Front suspension
|
Marzocchi hydraulic telescopic fork |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Swinging arm in light cast alloy with two dampers, preload adjustable |
Rear wheel travel
|
118 mm (4.6 inches) |
Front tire
|
110/70-17 |
Rear tire
|
130/80-17 |
Front brakes
|
Single disc. Bremo |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc. Bremo |
Diameter
|
260 mm (10.2 inches) |
Physical measures and capacities |
Dry weight
|
182.0 kg (401.2 pounds) |
Weight incl. oil, gas, etc
|
198.0 kg (436.5 pounds) |
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
Overall length
|
2185 mm (86.0 inches) |
Overall width
|
800 mm (31.5 inches) |
Fuel capacity
|
17.00 litres (4.49 US gallons) |
Other specifications |
Color options
|
Black, gray |
Starter
|
Electric |
