| Moto Guzzi's profilation of this bike |
| Low, long and hunched over the suspensions, the V7 Sport made its first appearance in the market with a rather unusual chromatic combination, obtained with the “Legnano” green used for the upper structures contrasting with the red frame of the first 150 specimens assembled in the Moto Guzzi testing department using a CrMo tubular frame as well as some changes to distribution and ignition details with respect to the next versions which had a black coloured frame. |
|
General information |
|
Model
|

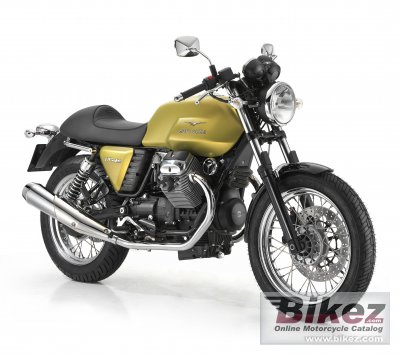

Moto Guzzi V7 Cafe Classic |
|
Year of manufacture
|
2010 |
|
Type
|
Classic |
|
Rating
|
3.3 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
744.0 ccm (45.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber-Marelli |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry single plate with flexible couplings |
|
Exhaust system
|
Twin raised silencers. Three-way catalyzer with lambda probe. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
ALS steel tubular dismountable twin cradle |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Marzocchi forks |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers. |
|
Rear wheel travel
|
118 mm (4.6 inches) |
|
Front tire
|
110/90-18 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Weight incl. oil, gas, etc
|
198.0 kg (436.5 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2185 mm (86.0 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
182 mm (7.2 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
|
Color options
|
Green, gray |
|
Starter
|
Electric |
