General information |
|
Model
|

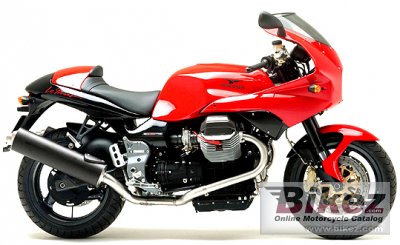

Moto Guzzi V11 Le Mans |
|
Model year
|
2006 |
|
Category
|
Sport touring |
| Price as new | US$ 11990. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1064.0 ccm (64.93 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
91.0 HP (66.4 kW)) @ 7800 RPM |
|
Torque
|
94.9 Nm (9.7 kgf-m or 70.0 ft.lbs) @ 6000 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
92.0 x 80.0 mm (3.6 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Magneti Marelli IAW Multipoint phased sequential fuel injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Magneti Marelli IAW electronic digital ignition |
|
Lubrication system
|
Wet sump, forced oil, cartridge filter |
|
Cooling system
|
Air |
|
Clutch
|
Double discs, dry, with hydraulic command |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Monobeam frame |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
Marzocchi USD fork, 43 mm compression/extension adjustable |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Cantilever swing arm with Sachs Boge mono shock compression/extension/preload adjustable |
|
Rear wheel travel
|
128 mm (5.0 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
226.0 kg (498.2 pounds) |
|
Power/weight ratio
|
0.4027 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1210 mm (47.6 inches) |
|
Overall length
|
2150 mm (84.6 inches) |
|
Overall width
|
785 mm (30.9 inches) |
|
Ground clearance
|
178 mm (7.0 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
20.66 litres (5.46 US gallons) |
|
Other specifications |
|
Color options
|
Black, Red |
|
Starter
|
Electric |
