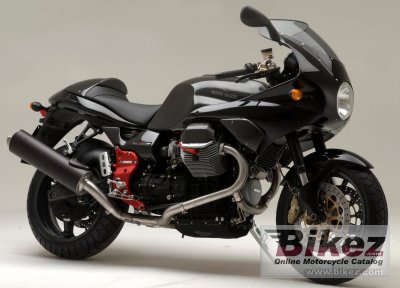

Moto Guzzi V11 Le Mans 20042004 Moto Guzzi V11 Le Mans specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Moto Guzzi V11 Le Mans |
| Model year | 2004 |
| Category | Sport touring |
| Rating | 3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1064.0 ccm (64.93 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 89.9 HP (65.6 kW)) @ 8200 RPM |
| Torque | 94.0 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 5400 RPM |
| Compression | 9.8:1 |
| Bore x stroke | 92.0 x 80.0 mm (3.6 x 3.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Monobeam frame |
| Rake (fork angle) | 25.0° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | Marzocchi USD fork, 43 mm compression/extension adjustable |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Cantilever swing arm with Sachs mono shock compression/extension/preload adjustable |
| Rear wheel travel | 128 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Dry weight | 226.0 kg (498.2 pounds) |
| Power/weight ratio | 0.3976 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1210 mm (47.6 inches) |
| Overall length | 2150 mm (84.6 inches) |
| Overall width | 785 mm (30.9 inches) |
| Ground clearance | 178 mm (7.0 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 20.70 litres (5.47 US gallons) |
| Reserve fuel capacity | 5.00 litres (1.32 US gallons) |
| Other specifications | |
| Color options | Rosso race, Grigio titanium |
| Comments | V11 Le Mans - Brembo Gold Series brakes, 180/55 17" rear tire, improved power and torque make this the most powerful version of this direct descendent of the original Guzzi 850 and 1000 Le Mans. The bikes that once dominated endurance racing. Available in Red, Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Moto Guzzi V11 Le Mans discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 Moto Guzzi V11 Le Mans discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Moto Guzzi bike | |
Reliability for the 2004 Moto Guzzi V11 Le Mans:  (81.6 out of 100)Click here for complete rating. |
|
