General information |
|
Motorcycle name
|

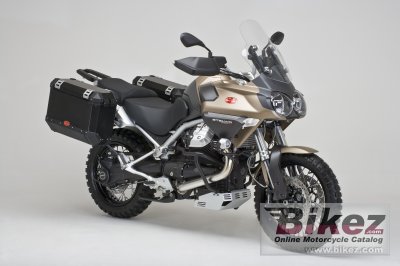

Moto Guzzi Stelvio TT |
|
Model year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1151.0 ccm (70.23 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
102.0 HP (74.5 kW)) @ 7500 RPM |
|
Torque
|
110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 6400 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
95.0 x 81.2 mm (3.7 x 3.2 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic injection, |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single plate with integrated flexible couplings |
|
Exhaust system
|
Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High tensile steel tubular twin cradle |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
125 mm (4.9 inches) |
|
Front suspension
|
Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers. |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
|
Rear wheel travel
|
155 mm (6.1 inches) |
|
Front tire
|
110/90-R19 |
|
Rear tire
|
150/70-R17 |
|
Front brakes
|
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
214.0 kg (471.8 pounds) |
|
Power/weight ratio
|
0.4766 HP/kg |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2250 mm (88.6 inches) |
|
Ground clearance
|
210 mm (8.3 inches) |
|
Wheelbase
|
1535 mm (60.4 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
3.30 litres (0.87 US gallons) |
|
Other specifications |
|
Color options
|
Two-tone beige, magnesium, black/white, red |
|
Starter
|
Electric |
|
Comments
|
Also called Stelvio 1200 4V TT. |
