General information |
Model name
|

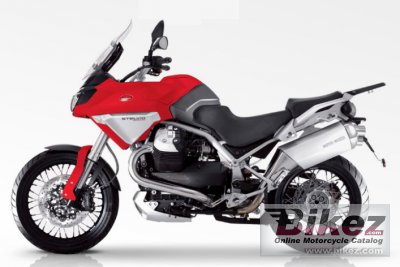

Moto Guzzi Stelvio 1200cc ABS |
Model year
|
2010 |
Category
|
Enduro / offroad |
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
1151.0 ccm (70.23 cubic inches) |
Engine type
|
V2, four-stroke |
Power output
|
108.4 HP (79.1 kW)) @ 7500 RPM |
Torque
|
108.0 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM |
Compression
|
11.0:1 |
Bore x stroke
|
95.0 x 81.2 mm (3.7 x 3.2 inches) |
Fuel system
|
Injection |
Ignition
|
Multipoint sequential electronic ignition, Magneti Marelli |
Cooling system
|
Oil & air |
Gearbox
|
6-speed |
Clutch
|
Single-disc with integrated anti-vibration buffer |
Exhaust system
|
Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3. |
Chassis, suspension, brakes and wheels |
Frame type
|
Tubular in high-strength steel with integrated engine |
Rake (fork angle)
|
27.0° |
Trail
|
125 mm (4.9 inches) |
Front suspension
|
Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers. |
Front wheel travel
|
170 mm (6.7 inches) |
Rear suspension
|
Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
Rear wheel travel
|
155 mm (6.1 inches) |
Front tire
|
110/90-R19 |
Rear tire
|
180/55-R17 |
Front brakes
|
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
Diameter
|
282 mm (11.1 inches) |
Physical measures and capacities |
Dry weight
|
214.0 kg (471.8 pounds) |
Weight incl. oil, gas, etc
|
251.0 kg (553.4 pounds) |
Power/weight ratio
|
0.5063 HP/kg |
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
Overall height
|
1475 mm (58.1 inches) |
Overall length
|
2250 mm (88.6 inches) |
Overall width
|
920 mm (36.2 inches) |
Ground clearance
|
210 mm (8.3 inches) |
Wheelbase
|
1535 mm (60.4 inches) |
Fuel capacity
|
18.00 litres (4.76 US gallons) |
Reserve fuel capacity
|
3.30 litres (0.87 US gallons) |
Other specifications |
Color options
|
Silver, red, black |
Starter
|
Electric |
