General information |
|
Motorcycle name
|

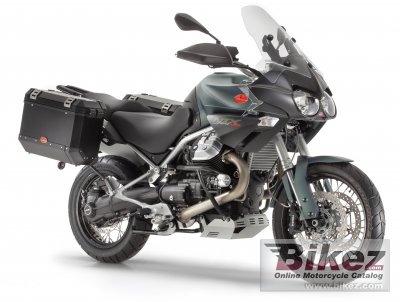

Moto Guzzi Stelvio 1200 NTX |
|
Year of manufacture
|
2013 |
|
Type
|
Super motard |
| Price as new | US$ 15990. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1151.0 ccm (70.23 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
90° V-twin |
|
Output
|
105.0 HP (76.6 kW)) @ 7500 RPM |
|
Torque
|
113.0 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 RPM |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Multipoint sequential electronic injection, Magneti Marelli IAW5A phased, alfa-n system; two Ø 50mm throttle bodies, Weber IWP 189 injectors, lambda probe. |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Single-disc with integrated anti-vibration buffer |
|
Driveline
|
Compact reactive cardan shaft drive system |
|
Exhaust system
|
Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High tensile steel tubular twin cradle |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
125 mm (4.9 inches) |
|
Front suspension
|
Completely adjustable fork (spring preload and hydraulic compression and rebound damping) with 45 mm diam. upside down stanchions and caliper mounting for radial brake calipers. |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Single arm with progressive linkage, monoshock with adjustable hydraulic rebound damping and spring preload adjuster knob. |
|
Rear wheel travel
|
155 mm (6.1 inches) |
|
Front tire
|
110/80-R19 |
|
Rear tire
|
150/70-R17 |
|
Front brakes
|
Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
272.0 kg (599.7 pounds) |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
840 mm (33.1 inches) If adjustable, highest setting. |
|
Overall height
|
1480 mm (58.3 inches) |
|
Overall length
|
2250 mm (88.6 inches) |
|
Overall width
|
1050 mm (41.3 inches) |
|
Ground clearance
|
210 mm (8.3 inches) |
|
Wheelbase
|
1535 mm (60.4 inches) |
|
Fuel capacity
|
32.00 litres (8.45 US gallons) |
|
Reserve fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Black, Gold |
|
Starter
|
Electric |
|
Carrying capacity
|
Saddle bags |
|
Comments
|
ATC traction control. Small windshield. |
