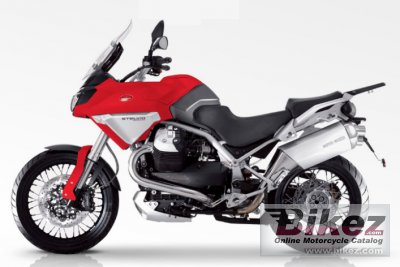

Moto Guzzi Stelvio 1200 ABS 20122012 Moto Guzzi Stelvio 1200 ABS specifications, pictures, reviews and rating |
| Moto Guzzi's profilation of this bike |
| Around this modern and technologically advanced base, a new concept of a no limits motorcycle took shape, creating a bike that is powerful, muscular, robust and unstoppable. |
| General information | |
|---|---|
| Model name | Moto Guzzi Stelvio 1200 ABS |
| Model year | 2012 |
| Category | Enduro / offroad |
| Price as new | US$ 15990. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1151.0 ccm (70.23 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 90° V-twin. |
| Power output | 110.0 HP (80.3 kW)) @ 7500 RPM |
| Torque | 108.0 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Multipoint sequential electronic ignition, Magneti Marelli |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Single-disc with integrated anti-vibration buffer |
| Driveline | Primary transmission with helical teeth, ratio 26/35 = 1: 1.346. Final drive: Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666. |
| Emission details | 3-way catalysed with Lambda probe. Euro 3. |
| Exhaust system | Stainless steel two-into-one |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular in high-strength steel with integrated engine |
| Rake (fork angle) | 27.0° |
| Trail | 125 mm (4.9 inches) |
| Front suspension | Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers. |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
| Rear wheel travel | 155 mm (6.1 inches) |
| Front tire | 110/90-R19 |
| Rear tire | 180/55-R17 |
| Front brakes | Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
| Diameter | 282 mm (11.1 inches) |
| Wheels | Spoked aluminium alloy |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 251.0 kg (553.4 pounds) |
| Seat height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Overall height | 1475 mm (58.1 inches) |
| Overall length | 2250 mm (88.6 inches) |
| Ground clearance | 210 mm (8.3 inches) |
| Wheelbase | 1535 mm (60.4 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Reserve fuel capacity | 3.30 litres (0.87 US gallons) |
| Other specifications | |
| Color options | Lunar white |
| Starter | Electric |
| Electrical | 12 V 18 Ah battery |
