General information |
|
Model name
|

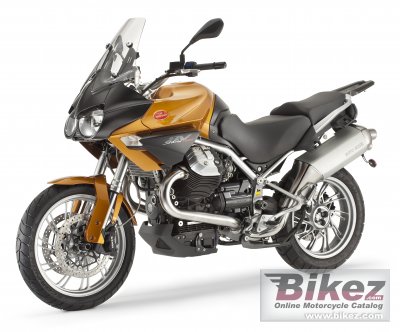

Moto Guzzi Stelvio 1200 4V ABS |
|
Year of manufacture
|
2011 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 15990. Euro 12590. UK £ 10299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1151.0 ccm (70.23 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
90° V-twin. |
|
Output
|
105.0 HP (76.6 kW)) @ 7500 RPM |
|
Torque
|
108.0 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
95.0 x 81.2 mm (3.7 x 3.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Multipoint sequential electronic ignition, Magneti Marelli |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single-disc with integrated anti-vibration buffer |
|
Driveline
|
Primary transmission with helical teeth, ratio 26/35 = 1: 1.346. Final drive: Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666. |
|
Emission details
|
3-way catalysed with Lambda probe. Euro 3. |
|
Exhaust system
|
Stainless steel two-into-one |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular in high-strength steel with integrated engine |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
125 mm (4.9 inches) |
|
Front suspension
|
Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers. |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
|
Rear wheel travel
|
155 mm (6.1 inches) |
|
Front tire
|
110/90-R19 |
|
Rear tire
|
180/55-R17 |
|
Front brakes
|
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
251.0 kg (553.4 pounds) |
|
Power/weight ratio
|
0.4183 HP/kg |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1475 mm (58.1 inches) |
|
Overall length
|
2250 mm (88.6 inches) |
|
Overall width
|
920 mm (36.2 inches) |
|
Ground clearance
|
210 mm (8.3 inches) |
|
Wheelbase
|
1535 mm (60.4 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
3.30 litres (0.87 US gallons) |
|
Other specifications |
|
Color options
|
Silver, red, black, grey, yellow |
|
Starter
|
Electric |
