General information |
|
Model
|

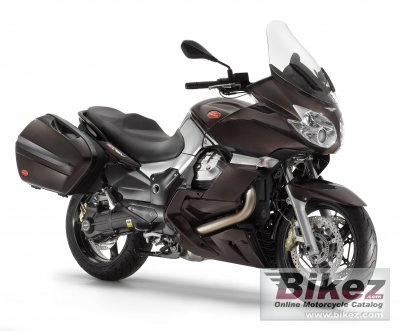

Moto Guzzi Norge GT 8V |
|
Model year
|
2013 |
|
Category
|
Sport touring |
| Price as new | US$ 16200. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1151.0 ccm (70.23 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
90° V-Twin, |
|
Power output
|
102.0 HP (74.5 kW)) @ 7000 RPM |
|
Torque
|
104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 5800 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
95.0 x 81.2 mm (3.7 x 3.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magneti Marelli IAW5A, and #945;-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry plate |
|
Driveline
|
CARC compact reactive cardan shaft drive system; double cardan joint and floating bevel gear set, drive ratio 12/44 = 1 : 3.666 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular cradle, high tensile steel |
|
Front suspension
|
Telescopic hydraulic fork with 45 mm, preload adjustable |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Stainless steel floating discs and callipers with 4 horizontally opposed pistons - ABS |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Stainless steel fixed disc, floating calliper with 2 parallel pistons - ABS |
|
Diameter
|
282 mm (11.1 inches) |
|
Wheels
|
Three spokes, light alloy wheels, gravity casting |
|
Physical measures and capacities |
|
Dry weight
|
257.0 kg (566.6 pounds) |
|
Power/weight ratio
|
0.3969 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Reserve fuel capacity
|
3.79 litres (1.00 US gallons) |
|
Other specifications |
|
Color options
|
Black, White |
|
Starter
|
Electric |
|
Electrical
|
Stainless steel with central equaliser and with 3-way catalytic converter with two Lambda probes (Euro 3). |
|
Carrying capacity
|
Saddle bags |
|
Comments
|
Electrically adjusted windshield |
