| Moto Guzzi's profilation of this bike |
| The TL version is a clear demonstration that Moto Guzzi pays great attention to a rider¡¯s needs. The ¡°Norge Project¡± aims at offering every rider the opportunity of choosing between equipment that has apparently small but significant differences. |
|
General information |
|
Motorcycle name
|

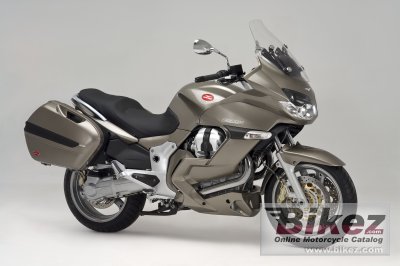

Moto Guzzi Norge 1200 TL |
|
Year of manufacture
|
2008 |
|
Type
|
Touring |
|
Rating
|
3.3 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1151.0 ccm (70.23 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
88.5 HP (64.6 kW)) @ 7500 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 5800 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
95.0 x 81.2 mm (3.7 x 3.2 inches) |
|
Fuel system
|
Injection. Weber-Marelli electronic fuel injection with stepper motor control |
|
Ignition
|
Magneti Marelli IAW5A, ¥á-n type; 2 ¨ª 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry |
|
Exhaust system
|
Stainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular cradle, high tensile steel |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Telescopic hydraulic fork with ¨ª 45 mm, preload adjustable |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
246.0 kg (542.3 pounds) |
|
Power/weight ratio
|
0.3598 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
