| Moto Guzzi's profilation of this bike |
| The Norge 1200 T is living proof of how Moto Guzzi strives to satisfy the needs of the modern motorcyclist. The aim of the ‘Norge project’ is to offer all motorcyclists the chance to choose from a range of subtly but significantly different models, all of which offer a superb level of finish down to the smallest detail. |
|
General information |
|
Model
|

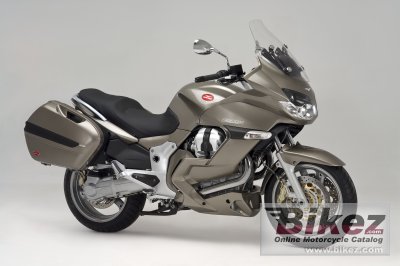

Moto Guzzi Norge 1200 T |
|
Year
|
2010 |
|
Category
|
Touring |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1151.0 ccm (70.23 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
88.5 HP (64.6 kW)) @ 7500 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 5800 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
95.0 x 81.2 mm (3.7 x 3.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber-Marelli electronic fuel injection with stepper motor control |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry plate |
|
Exhaust system
|
Stainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular cradle, high tensile steel |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Telescopic hydraulic fork with Ø 45 mm, preload adjustable |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
246.0 kg (542.3 pounds) |
|
Power/weight ratio
|
0.3598 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Ground clearance
|
187 mm (7.4 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Silver, Red, Black |
