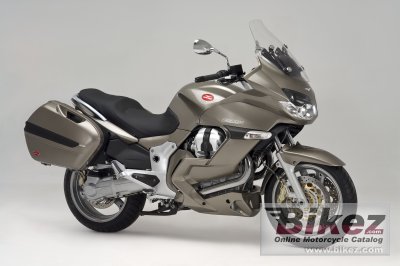

Moto Guzzi Norge 1200 GTL 20092009 Moto Guzzi Norge 1200 GTL specifications, pictures, reviews and rating |
| Moto Guzzi's profilation of this bike |
| The Gran Turismo in a luxury version with every extra. The wonderful fairing covering the elegant mass of the engine protects the rider’s legs and reduces spray while side panels protect the frame. |
| General information | |
|---|---|
| Model name | Moto Guzzi Norge 1200 GTL |
| Year | 2009 |
| Category | Touring |
| Rating | 3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1151.0 ccm (70.23 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 88.5 HP (64.6 kW)) @ 7500 RPM |
| Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 5800 RPM |
| Compression | 9.8:1 |
| Bore x stroke | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Weber-Marelli electronic fuel injection with stepper motor control |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Exhaust system | Stainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler. Euro 3. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular cradle, high tensile steel |
| Rake (fork angle) | 25.0° |
| Trail | 120 mm (4.7 inches) |
| Front suspension | Telescopic hydraulic fork with Ø 45 mm, preload adjustable |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Dry weight | 247.0 kg (544.5 pounds) |
| Power/weight ratio | 0.3583 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 870 mm (34.3 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Wheelbase | 1495 mm (58.9 inches) |
| Fuel capacity | 23.00 litres (6.08 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Grey |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Moto Guzzi Norge 1200 GTL discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Moto Guzzi Norge 1200 GTL discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Moto Guzzi bike | |
Reliability for the 2009 Moto Guzzi Norge 1200 GTL:  (68.6 out of 100)Click here for complete rating. |
|
