General information |
|
Model name
|

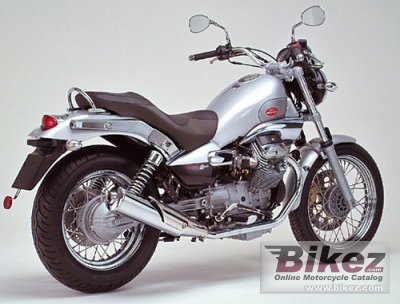

Moto Guzzi Nevada Classic 750 IE |
|
Year of manufacture
|
2006 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 8990. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
744.0 ccm (45.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
46.0 HP (33.6 kW)) @ 6600 RPM |
|
Torque
|
57.0 Nm (5.8 kgf-m or 42.0 ft.lbs) @ 3000 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber- Marelli electronic injection |
|
Ignition
|
Magneti Marelli electronic digital Digiplex 25 |
|
Lubrication system
|
Wet sump, forced oil, cartridge filter |
|
Cooling system
|
Air |
|
Clutch
|
Single disc, dry with cush drive |
|
Exhaust system
|
Steel with 2 polished steel mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
135 mm (5.3 inches) |
|
Front suspension
|
Marzocchi 40 mm hydraulic |
|
Front wheel travel
|
137 mm (5.4 inches) |
|
Rear suspension
|
Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound |
|
Rear wheel travel
|
74 mm (2.9 inches) |
|
Front tire
|
110/90-18 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
176.0 kg (388.0 pounds) |
|
Power/weight ratio
|
0.2614 HP/kg |
|
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1181 mm (46.5 inches) |
|
Overall length
|
2210 mm (87.0 inches) |
|
Overall width
|
874 mm (34.4 inches) |
|
Ground clearance
|
191 mm (7.5 inches) |
|
Wheelbase
|
1482 mm (58.4 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Grey, Black |
|
Starter
|
Electric |
