| Moto Guzzi's profilation of this bike |
| A treat for the eyes, easy to ride, and with that unmistakable, slightly retro look that never ceases to please, the Nevada Classic 750 is the definitive custom. The Guzzi philosophy of totally relaxed riding is perfectly embodied in this model that has been constantly improved over the years in both looks and technology.
|
|
General information |
|
Motorcycle name
|

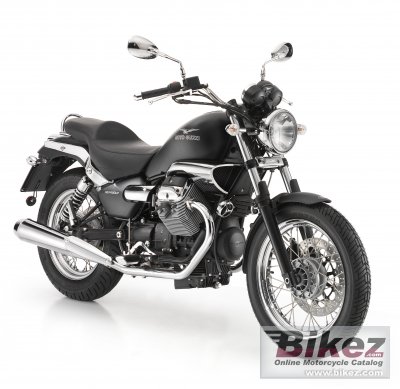

Moto Guzzi Nevada Classic 750 |
|
Model year
|
2010 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
744.0 ccm (45.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
47.6 HP (34.7 kW)) @ 6800 RPM |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber Weber-Marelli IAW15RC electronic injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single disc, dry, with cush drive |
|
Exhaust system
|
Three-way catalyzer with Lambda sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
138 mm (5.4 inches) |
|
Front suspension
|
Marzocchi hydraulic telescopic fork, 40 mm |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
100/90-18 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
184.0 kg (405.7 pounds) |
|
Power/weight ratio
|
0.2587 HP/kg |
|
Overall height
|
1068 mm (42.0 inches) |
|
Overall length
|
2166 mm (85.3 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1467 mm (57.8 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black, white, gray |
|
Starter
|
Electric |
