| Moto Guzzi's profilation of this bike |
| Fantastic to see, easy to drive, easy to recognise with its retro look that is always popular, the Nevada Classic 750 is the custom bike par excellence. |
|
General information |
|
Motorcycle name
|

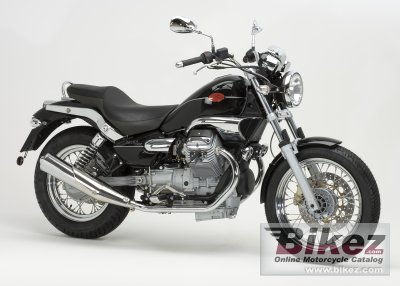

Moto Guzzi Nevada Classic 750 |
|
Year of manufacture
|
2008 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
744.0 ccm (45.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
47.6 HP (34.7 kW)) @ 6800 RPM |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Ignition
|
Magneti Marelli electronic digital Digiplex 25 |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Single disc, dry, with cush drive |
|
Exhaust system
|
Steel, with 2 polished steel mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
138 mm (5.4 inches) |
|
Front suspension
|
Marzocchi hydraulic telescopic fork, 40 mm |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Dual shocks, swing arm |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
100/90-18 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
184.0 kg (405.7 pounds) |
|
Power/weight ratio
|
0.2587 HP/kg |
|
Overall height
|
1068 mm (42.0 inches) |
|
Overall length
|
2166 mm (85.3 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Wheelbase
|
1467 mm (57.8 inches) |
|
Other specifications |
|
Color options
|
Beige Sabbia/Grigio Platino. Grigio Iron/Nero |
|
Starter
|
Electric |
