| Moto Guzzi's profilation of this bike |
| What could be better than the classic Nevada 750 equipped with electronic fuel injection?
Only Moto Guzzi could surpass itself in this way, injecting a new lease of life into a motorcycle that time alone cannot stop. |
|
General information |
|
Model name
|

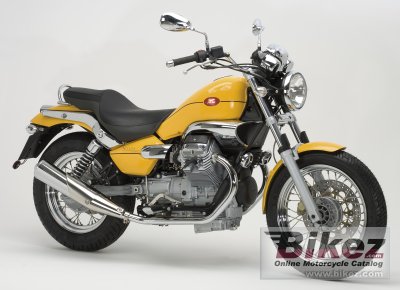

Moto Guzzi Nevada Classic 750 |
|
Year model
|
2007 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 8990. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
744.0 ccm (45.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.2 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single disc, dry, with cush drive |
|
Exhaust system
|
Three-way catalyzer with Lambda sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
135 mm (5.3 inches) |
|
Front suspension
|
Marzocchi 40 mm telescopic fork. |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Dual shocks |
|
Rear wheel travel
|
75 mm (3.0 inches) |
|
Front tire
|
100/90-18 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc. 4-piston caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 1-piston calipers |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
184.5 kg (406.8 pounds) |
|
Seat height
|
768 mm (30.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2166 mm (85.3 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Wheelbase
|
1467 mm (57.8 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Black, Red |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Moto Guzzi Nevada Classic 750 discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Moto Guzzi bike
|
Design and look for the 2007 Moto Guzzi Nevada Classic 750:
 (73.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
