Moto Guzzi's profilation of this bike |
This easy-to-ride entry level custom cruiser has been completely redesigned. The new Nevada Classic 750 IE is the perfect motorcycle for cruising around town, on campus or short to medium distance touring. |
General information |
Model name
|

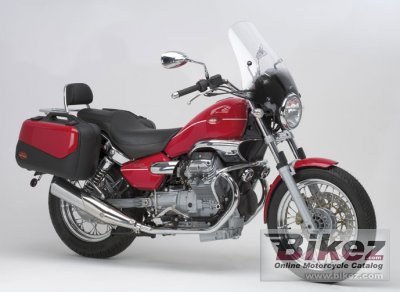

Moto Guzzi Nevada 750 Touring |
Year of manufacture
|
2007 |
Type
|
Touring |
Rating
|
3.2 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Engine size
|
744.0 ccm (45.40 cubic inches) |
Type of engine
|
V2, four-stroke |
Output
|
48.3 HP (35.2 kW)) @ 6800 RPM |
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
Compression
|
9.6:1 |
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. 2 Dell´Orto PHBH 30 carburettors, Ø 30 mm |
Ignition
|
Magneti Marelli electronic digital Digiplex 25 |
Lubrication system
|
Wet sump, forced oil, cartridge filter |
Cooling system
|
Air |
Gearbox
|
5-speed |
Clutch
|
Single disc, dry with cush drive |
Exhaust system
|
Steel with 2 polished steel mufflers |
Chassis, suspension, brakes and wheels |
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
Rake (fork angle)
|
27.5° |
Front suspension
|
Marzocchi 40 mm hydraulic |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound |
Rear wheel travel
|
130 mm (5.1 inches) |
Front tire
|
110/90-V18 |
Rear tire
|
130/90-V16 |
Front brakes
|
Single disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
260 mm (10.2 inches) |
Physical measures and capacities |
Dry weight
|
196.0 kg (432.1 pounds) |
Power/weight ratio
|
0.2463 HP/kg |
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
Overall height
|
1181 mm (46.5 inches) |
Overall length
|
2210 mm (87.0 inches) |
Overall width
|
874 mm (34.4 inches) |
Ground clearance
|
191 mm (7.5 inches) |
Wheelbase
|
1482 mm (58.4 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Color options
|
Beige Sabbia/Grigio Platino, Grigio Iron/Nero |
Starter
|
Electric |
