Moto Guzzi Nevada 750 Club 20042004 Moto Guzzi Nevada 750 Club specifications, pictures, reviews and rating |

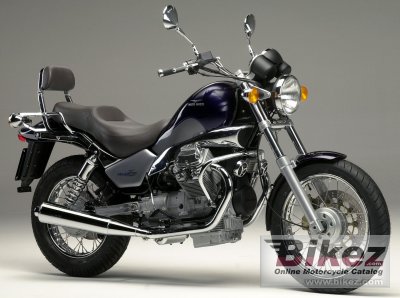

2004 Moto Guzzi Nevada 750 Club. Image credits - Moto Guzzi.
| General information | |
|---|---|
| Motorcycle name | Moto Guzzi Nevada 750 Club |
| Model year | 2004 |
| Category | Custom / cruiser |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 744.0 ccm (45.40 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 45.6 HP (33.3 kW)) @ 6600 RPM |
| Torque | 77.3 Nm (7.9 kgf-m or 57.0 ft.lbs) @ 3000 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Detachable tubular duplex cradle |
| Rake (fork angle) | 28.0° |
| Trail | 134 mm (5.3 inches) |
| Front suspension | Marzocchi 40 mm hydraulic telescopic fork |
| Front wheel travel | 136 mm (5.4 inches) |
| Rear suspension | Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound |
| Rear wheel travel | 75 mm (3.0 inches) |
| Front tire | 100/90-V18 |
| Rear tire | 130/90-V16 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 182.0 kg (401.2 pounds) |
| Power/weight ratio | 0.2505 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall length | 2205 mm (86.8 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 190 mm (7.5 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Rosso Baroque/Grigio minerale. bluen lord/grigio Berlin,Grigio platino/Bianco |
