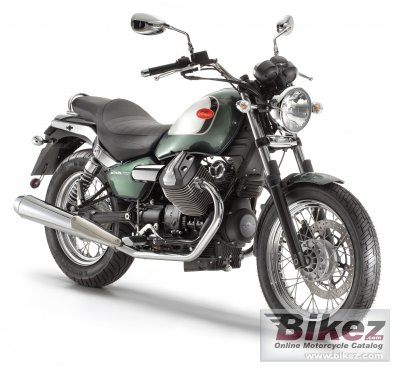

Moto Guzzi Nevada 750 Classic 20122012 Moto Guzzi Nevada 750 Classic specifications, pictures, reviews and rating |
| Moto Guzzi's profilation of this bike |
| During the late 80’s the Moto Guzzi Nevada was the bestselling vehicle produced by Mandello del Lario: The Nevada is uniquely styled as well as reliable and easy-to-drive. Its style as not aged with time, instead its classic look and sleek retro lines become more endearing as the decades pass. |
| General information | |
|---|---|
| Model | Moto Guzzi Nevada 750 Classic |
| Year | 2012 |
| Category | Custom / cruiser |
| Rating | 3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 744.0 ccm (45.40 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 90° V-Twin. 2 overhead valves with light alloy push-rod |
| Power | 48.0 HP (35.0 kW)) @ 6800 RPM |
| Torque | 54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Weber Weber-Marelli IAW15RC electronic injection |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
| Lubrication system | By lobes with pressure pump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Single disc, dry, with cush drive |
| Emission details | Three-way catalyzer with Lambda sensor |
| Chassis, suspension, brakes and wheels | |
| Frame type | Detachable tubular duplex cradle in special high-strengh steel |
| Rake (fork angle) | 27.5° |
| Trail | 138 mm (5.4 inches) |
| Front suspension | Marzocchi hydraulic telescopic fork |
| Rear suspension | Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks |
| Front tire | 100/90-18 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 184.0 kg (405.7 pounds) |
| Overall height | 1068 mm (42.0 inches) |
| Overall length | 2166 mm (85.3 inches) |
| Overall width | 825 mm (32.5 inches) |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1467 mm (57.8 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Reserve fuel capacity | 3.56 litres (0.94 US gallons) |
| Other specifications | |
| Color options | Black, white, burgundy |
| Starter | Electric |
