General information |
|
Motorcycle name
|

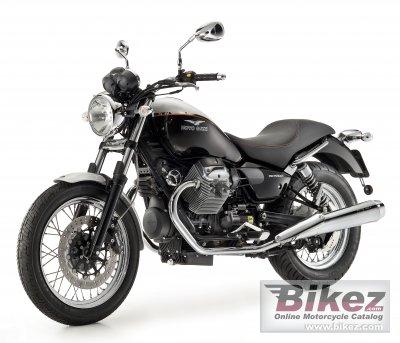

Moto Guzzi Nevada 750 Anniversario |
|
Year model
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | Euro 7960. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
744.0 ccm (45.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
90° V-Twin. 2 overhead valves with light alloy push-rod |
|
Effect
|
47.6 HP (34.7 kW)) @ 6800 RPM |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber Weber-Marelli IAW15RC electronic injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single disc, dry, with cush drive |
|
Emission details
|
Three-way catalyzer with Lambda sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
138 mm (5.4 inches) |
|
Front suspension
|
Marzocchi hydraulic telescopic fork, 40 mm |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
100/90-18 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc. 4-piston calliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
184.0 kg (405.7 pounds) |
|
Weight incl. oil, gas, etc
|
196.0 kg (432.1 pounds) |
|
Power/weight ratio
|
0.2587 HP/kg |
|
Seat height
|
752 mm (29.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2166 mm (85.3 inches) |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1467 mm (57.8 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
White |
