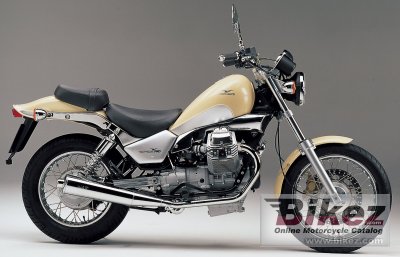

Moto Guzzi Nevada 750 20042004 Moto Guzzi Nevada 750 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Moto Guzzi Nevada 750 |
| Year | 2004 |
| Category | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 744.0 ccm (45.40 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 45.6 HP (33.3 kW)) @ 6600 RPM |
| Torque | 77.3 Nm (7.9 kgf-m or 57.0 ft.lbs) @ 3000 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Detachable tubular duplex cradle |
| Rake (fork angle) | 28.0° |
| Trail | 134 mm (5.3 inches) |
| Front suspension | Marzocchi 40 mm hydraulic telescopic fork |
| Front wheel travel | 136 mm (5.4 inches) |
| Rear suspension | Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound |
| Rear wheel travel | 75 mm (3.0 inches) |
| Front tire | 100/90-V18 |
| Rear tire | 130/90-V16 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 176.0 kg (388.0 pounds) |
| Power/weight ratio | 0.2590 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall length | 2205 mm (86.8 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 190 mm (7.5 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Beige sabbia/Grigio platino, Grigio iron/nero |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Moto Guzzi Nevada 750 discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Moto Guzzi. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2004 Moto Guzzi Nevada 750 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Moto Guzzi bike | |
Touring capabilities for the 2004 Moto Guzzi Nevada 750:  (76.5 out of 100)Click here for complete rating. |
|
