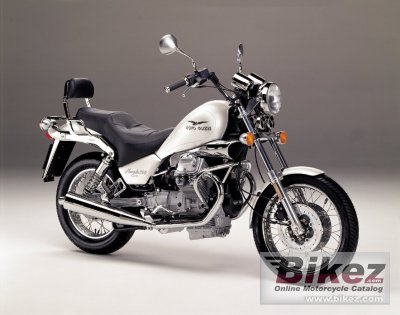

2002 Moto Guzzi Nevada 750. Picture by Moto Guzzi. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Moto Guzzi Nevada 750 |
|
Year model
|
2002 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
744.0 ccm (45.40 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
48.0 HP (35.0 kW)) @ 6200 RPM |
|
Torque
|
59.4 Nm (6.1 kgf-m or 43.8 ft.lbs) @ 3200 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
100/90-V18/H18 |
|
Rear tire
|
130/90-V16/H16 |
|
Front brakes
|
Dual disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Power/weight ratio
|
0.2637 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1180 mm (46.5 inches) |
|
Overall length
|
2205 mm (86.8 inches) |
|
Overall width
|
875 mm (34.4 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Moto Guzzi Nevada 750 discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
Compare with another motorcycle |
|
|
|
|
|
Rating sample for this Moto Guzzi bike
|
Engine performance for the 2002 Moto Guzzi Nevada 750:
 (68.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
