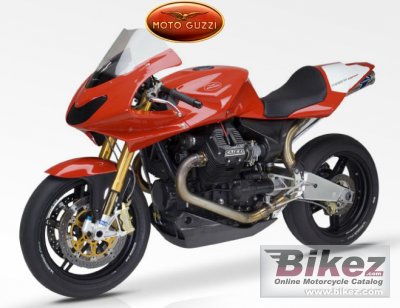

Moto Guzzi MGS-01 Corsa 20122012 Moto Guzzi MGS-01 Corsa specifications, pictures, reviews and rating |
| Moto Guzzi's profilation of this bike |
| Excellent weight distribution (with only 200 grams of difference between the front and rear wheels) contributes to fantastic agility, aided by low weight (only 192 kg) and a short wheelbase (1450 mm). |
| General information | |
|---|---|
| Motorcycle name | Moto Guzzi MGS-01 Corsa |
| Year model | 2012 |
| Type | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1225.0 ccm (74.75 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 128.0 HP (93.4 kW)) @ 8000 RPM |
| Torque | 113.0 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 6200 RPM |
| Compression | 11.6:1 |
| Bore x stroke | 100.0 x 78.0 mm (3.9 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Weber-Marelli electronic fuel injection with stepper motor control |
| Fuel control | Overhead Cams (OHC) |
| Lubrication system | Splash |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Sintering double disc, hydraulic drive |
| Driveline | Primary drive: straight – tooth gear, ratio 1: 1.55. Secondary drive: double universal joint, ratio 1:2.909 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Rectangular section single-beam ALS 450 |
| Rake (fork angle) | 24.0° |
| Trail | 97 mm (3.8 inches) |
| Front suspension | Öhlins up-side down fork Ø 43 mm, 3 adjustment positions |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Aluminium-plate swinging fork Öhlins monoshock absorber, 4 adjustment positions |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 120/60-17 |
| Rear tire | 180/67-17 |
| Front brakes | Double disc. Floating discs, 4 pads radial caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Double disc. Double piston caliper |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Forged aluminium 5 spokes |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 192.0 kg (423.3 pounds) |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1165 mm (45.9 inches) |
| Overall length | 2070 mm (81.5 inches) |
| Overall width | 730 mm (28.7 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 18.50 litres (4.89 US gallons) |
| Other specifications | |
| Color options | Racing Red |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Moto Guzzi MGS-01 Corsa discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
