General information |
|
Motorcycle name
|

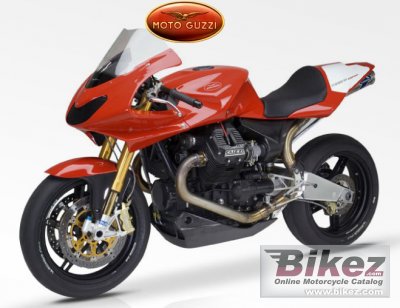

Moto Guzzi MGS-01 Corsa |
|
Year of manufacture
|
2011 |
|
Type
|
Sport |
| Price as new | Euro 25640. UK £ 18499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1225.0 ccm (74.75 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
128.0 HP (93.4 kW)) @ 8000 RPM |
|
Torque
|
113.0 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 6200 RPM |
|
Compression
|
11.6:1 |
|
Bore x stroke
|
100.0 x 78.0 mm (3.9 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Weber-Marelli electronic fuel injection with stepper motor control |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Marelli IAW 15M electronic digital |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Sintering double disc, hydraulic drive |
|
Driveline
|
Primary drive: straight – tooth gear, ratio 1: 1.55. Secondary drive: double universal joint, ratio 1:2.909 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Rectangular section single-beam ALS 450 |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
97 mm (3.8 inches) |
|
Front suspension
|
Öhlins up-side down fork Ø 43 mm, 3 adjustment positions |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Aluminium-plate swinging fork Öhlins monoshock absorber, 4 adjustment positions |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/60-17 |
|
Rear tire
|
180/67-17 |
|
Front brakes
|
Double disc. Floating discs, 4 pads radial caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Double disc. Double piston caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Forged aluminium 5 spokes |
|
Physical measures and capacities |
|
Dry weight
|
192.0 kg (423.3 pounds) |
|
Weight incl. oil, gas, etc
|
210.0 kg (463.0 pounds) |
|
Power/weight ratio
|
0.6667 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2070 mm (81.5 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric |
