| Moto Guzzi's profilation of this bike |
| The MGS 01 is the most exclusive and extreme V twin supersport on the world racing scene. The undisputed queen of the Battle of Twins, holder of the 2006 and 2007 Daytona titles, and winner of the Italian air cooled twins championship, the MGS01 is universally viewed as unbeatable by riders and the next Moto Guzzi legend by race fans in general. |
|
General information |
|
Motorcycle name
|

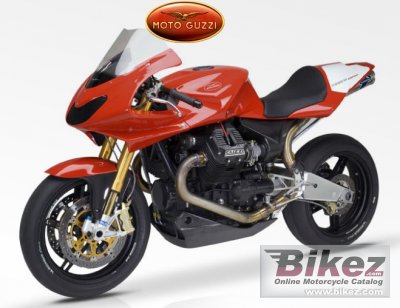

Moto Guzzi MGS-01 Corsa |
|
Model year
|
2010 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1225.0 ccm (74.75 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
128.0 HP (93.4 kW)) @ 8000 RPM |
|
Compression
|
11.6:1 |
|
Bore x stroke
|
100.0 x 78.0 mm (3.9 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Weber-Marelli electronic fuel injection with stepper motor control |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Marelli IAW 15M electronic digital |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Sintering double disc, hydraulic drive |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Rectangular section single-beam ALS 450 |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
97 mm (3.8 inches) |
|
Front suspension
|
Öhlins up-side down fork Ø 43 mm, 3 adjustment positions |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Aluminium-plate swinging fork Öhlins monoshock absorber, 4 adjustment positions |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/60-17 |
|
Rear tire
|
180/67-17 |
|
Front brakes
|
Double disc. Floating discs, 4 pads radial caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Double disc. Double piston caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
192.0 kg (423.3 pounds) |
|
Power/weight ratio
|
0.6667 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2070 mm (81.5 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Other specifications |
|
Color options
|
Red |
