General information |
|
Model name
|

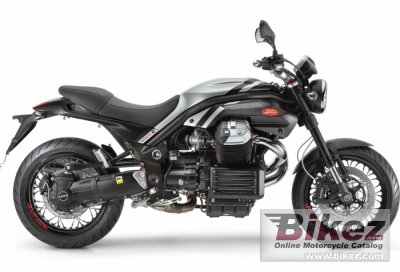

Moto Guzzi Griso 8V SE |
|
Year
|
2013 |
|
Category
|
Naked bike |
| Price as new | US$ 12699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1064.0 ccm (64.93 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
V 90 twin |
|
Power
|
110.0 HP (80.3 kW)) @ 7500 RPM |
|
Torque
|
108.0 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
95.0 x 81.5 mm (3.7 x 3.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe. |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Inductive discharge, digitally controlled, electronic twin spark ignition |
|
Lubrication system
|
Oil bath |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single plate with integrated flexible couplings |
|
Driveline
|
CA.R.C reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3,666 |
|
Exhaust system
|
Stainless steel, 2 in 1, with three way catalyser and Lambda probe oxygen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High tensile steel tubular twin cradle |
|
Rake (fork angle)
|
26.3° |
|
Trail
|
108 mm (4.3 inches) |
|
Front suspension
|
Upside down fork, fully adjustable in spring preload and compression and rebound damping |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Perforated wave discs and 4 opposed piston calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Floating caliper fitted with 2 parallel pistons |
|
Diameter
|
282 mm (11.1 inches) |
|
Wheels
|
Tubeless spoke wheels with aluminium Ber rim and Alpina spokes. |
|
Physical measures and capacities |
|
Dry weight
|
222.0 kg (489.4 pounds) |
|
Power/weight ratio
|
0.4955 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2260 mm (89.0 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1554 mm (61.2 inches) |
|
Fuel capacity
|
16.70 litres (4.41 US gallons) |
|
Reserve fuel capacity
|
1.89 litres (0.50 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Comments
|
Special edition bike. |
