| Moto Guzzi's profilation of this bike |
| This machine would be fitted with an 850 engine that enthusiasts know well. Obviously the only thing that belongs to the past is the size of the engine. All you have to do is twist the throttle to realise that under the aggressive appearance a new heart beats. |
|
General information |
|
Model name
|

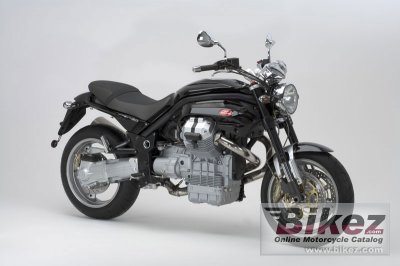

Moto Guzzi Griso 850 |
|
Model year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
3.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
877.0 ccm (53.51 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
75.1 HP (54.8 kW)) @ 7600 RPM |
|
Torque
|
70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 7000 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
92.0 x 66.0 mm (3.6 x 2.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel; 2 throttle bodies of 40 mm with injectors Weber IW 031, Lambda sensor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dual disc dry |
|
Exhaust system
|
Stainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, in high tensile strenght tubular steel |
|
Rake (fork angle)
|
26.3° |
|
Trail
|
108 mm (4.3 inches) |
|
Front suspension
|
43 mm upside down fork, fully adjustable in spring preload and compression and rebound damping |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Single sided swingarm with rising rate linkages, monoshock with separate gas reservoir, fully adjustable in spring preload and compression and rebound damping |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
227.0 kg (500.4 pounds) |
|
Power/weight ratio
|
0.3308 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2260 mm (89.0 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1554 mm (61.2 inches) |
|
Fuel capacity
|
17.20 litres (4.54 US gallons) |
|
Reserve fuel capacity
|
3.30 litres (0.87 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, yellow |
|
Starter
|
Electric |
