General information |
|
Motorcycle name
|

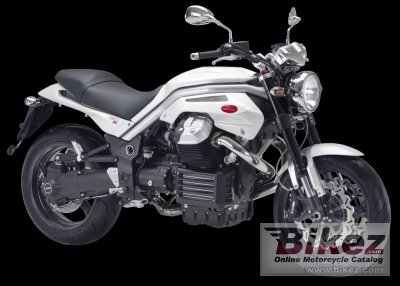

Moto Guzzi Griso 1100 |
|
Year model
|
2009 |
|
Type
|
Naked bike |
|
Rating
|
3.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1064.0 ccm (64.93 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
86.9 HP (63.4 kW)) @ 7600 RPM |
|
Torque
|
89.0 Nm (9.1 kgf-m or 65.6 ft.lbs) @ 6400 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
92.0 x 80.0 mm (3.6 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber-Marelli electronic fuel injection with stepper motor control |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Inductive discharge, digitally controlled, electronic twin spark ignition |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Exhaust system
|
Stainless steel, 2 in 1, with three way catalyser and Lambda probe oxygen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, in high tensile strength tubular steel |
|
Rake (fork angle)
|
26.3° |
|
Trail
|
108 mm (4.3 inches) |
|
Front suspension
|
Ø 43 mm upside down fork, fully adjustable in spring preload and compression and rebound damping |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Single sided swingarm with rising rate linkages, monoshock with separate gas reservoir, fully adjustable in spring preload and compression and rebound damping |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Stainless steel floating discs and two calipers with four opposed pistons |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Single Ø 282 mm stainless steel fixed disc and floating caliper with two parallel pistons |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
227.0 kg (500.4 pounds) |
|
Power/weight ratio
|
0.3828 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2260 mm (89.0 inches) |
|
Overall width
|
880 mm (34.6 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1554 mm (61.2 inches) |
|
Fuel capacity
|
17.20 litres (4.54 US gallons) |
|
Reserve fuel capacity
|
3.30 litres (0.87 US gallons) |
|
Other specifications |
|
Color options
|
Black, orange |
|
Starter
|
Electric |
